Airspace class-b-airspace map class-c-airspace. Airports with control towers underlying Class A B and C airspace are shown.

How To Read A Vfr Sectional Chart Young Aviators Inc

From 1200ft shaded cyan.

Class c airspace sectional chart. An example of Class E airspace. What does the T on sectional charts mean in reference to airspace altitude. Identify Class Charlie C airspace with a magenta circle on sectional charts see figure 4.

First there is a sectional chart that is showing an airport with a class E airspace circle around it. Class D airspace On sectional chart dashed blue lines Dashed blue lines show boundaries of D class airspace in this case its an airspace around Juneau Airport. Private Pilot Ground School 37.

Class E airspace is controlled airspace which is not Class A B C or D. Thus to identify a class G airspace one must first look for signs of any of the 5 controlled classes. A stronger line far left on the image above is used to emphasize outer boundary of B class airspace.

Ask Question Asked 3 years 1 month ago. Which is true concerning the blue and magenta colors used to depict airports on Sectional Aeronautical Charts. Would that answer be 1300 AGL or MSL the chart shows a 41 over 13 inside the outer solid magenta circle.

From SFC a thin dashed magenta line. This airspace can be generally found below class E airspace. Then there is another sectional that asks what the floor is in the outer circle of a class C airport.

Airspace and Sectional Charts. Much like Class B the geometry of Class C airspace also resembled an upside-down. Heres a few examples of each below.

Similar to Class B Charlie altitudes are given in MSL with the last two zeros omitted but they can be differentiated by their magenta color see figure 5. Numbers show top and bottom of airspace in hundreds of feet so 30 means 3000ft 100 10000ft SFC stands for surface. Airspace boundaries are depicted with solid blue lines.

I am being told. It is depicted on the sectional chart in a few ways. Unless otherwise authorized by ATC aircraft operating within this airspace must be equipped with automatic pressure altitude reporting equipment having Mode C capability.

When Class E airspace extends down to 700 AGL the sectional shows a faded magenta line not a solid magenta line like Class C Airspace. The good part about this class of airspace is that a pilot manned or unmanned aircraft does not require any special. Viewed 11k times 17 begingroup These are present in the San Francisco class bravo Oakland class charlie and OHare class bravo Midway class charlie.

Number in the dashed square informs about airspace vertical limit in this case 25 2500ft above mean sea level. Class C airspace is very similar to Class B expect it applies to smaller and less busy airports. Class C is a class of airspace in the United States which follows International Civil Aviation Organization ICAO air space designation.

Active 6 months ago. If theyre absent then it is the class G airspace. Terms in this set 73 What are the entry requirements for class A airspace.

Would that be 700ft AGL or MSL for the floor of the class E space. The extent of Class C airspace can reach up to 10 nautical miles horizontally and have a maximum altitude of around 4000 feet. When Class E Airspace extends down to the surface the sectional shows a faded magenta line thats the 700 AGL to 17999 MSL but will also show a dashed red circle.

On sectional chart solid blue lines. Sectional ChartTerminal Chart Airspace Controlled Airspace Uncontrolled Airspce Special Use Airspce. Number in the dashed square informs about airspace vertical limit in this case 25 2500ft above mean sea level.

Use with caution but I do feel good about the research I did on this one. Class C is the airspace from the surface to 4000 feet above airport elevation in the regions around airports with operational control towers and radar approach control. Thick Shaded Magenta Line Starts at 700 ft.

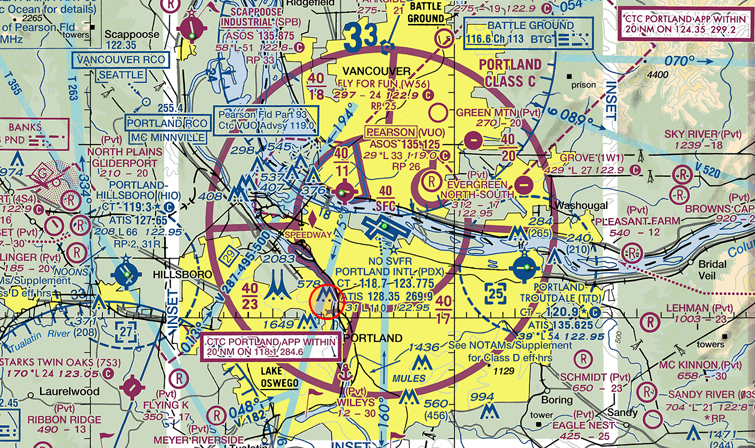

Class D airspace On sectional chart dashed blue lines Dashed blue lines show boundaries of D class airspace in this case its an airspace around Juneau Airport. However class G is not represented on a sectional chart. On a sectional chart Class C airspace is denoted by two magenta-colored concentric circles.

This is where the Class E Airspace extends. These are also airports which have a particular number of IFR operationspassenger enplanements. Manned and unmanned aircraft alike need authorization from the FAA to enter this airspace.

Class C Charlie Airspace. Follow asked Jun. Airports with control towers underlying Class B C D and E airspace are shown in blue.

Made using AFMAN 11-202v3 dated 10 June 2020 and a bunch of random sources on the internet. Minus in front of such number not visible here means up to but not including. The airspace within 30 nautical miles of an airport listed in Appendix D Section 1 of 14 CFR Part 91 generally primary airports within Class B airspace areas from the surface upward to 10000 feet MSL.

Aircraft operating in these airspace areas are subject to certain. Class G The Only Uncontrolled Airspace Nominally Surface to 1200 AGL May Extend to Higher Altitude up to 14500 in Sparsely Populated Areas Technically Not. Class C airspace areas are designed to improve aviation safety by reducing the risk of mid-air collisions in the terminal area and enhance the management of air traffic operations therein.

From 700ft a thick shaded magenta. Class A Not Depicted on Sectional Charts IFR Only Private Pilot 18000 to 60000 MSL Referred to as Flight Level in Hundreds of Feet Eg FL 350 35000 Drop the hundreds digits. Minus in front of such number not visible here means up to but not including.
